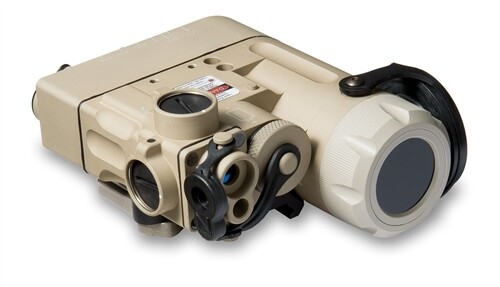

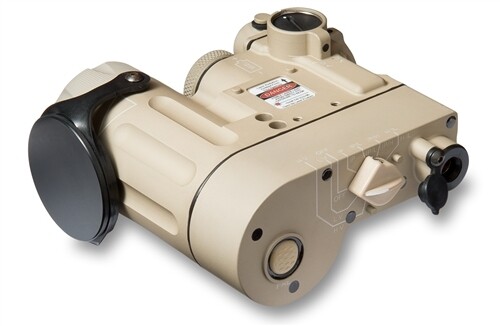

STEINER DBAL-D2 DUAL BEAM GREEN VISIBLE & IR LASER W/ IR ILLUMINATOR

https://www.rssdefense.com/product/steiner-dbal-d2...

DESCRIPTION:

The Steiner Laser Devices DBAL-D2 allows users to seamlessly transition from day maneuvers using a green visible laser to covert night time operations using the Class 1 IR laser. Manufactured with high definition, aspherical telescopic lens technology, the DBAL-D2 features a 2° to 30° adjustable illumination beam. This highly collimated beam significantly enhances night vision performance and offers an eye-safe means of illuminating distances greater than 1000 m. Military and law enforcement models also features an enhanced end cap, taking full advantage of the added switching capabilities of the full powered D2.

FEATURES:

• Fully Adjustable Windage / Elevation
• Quick Release HT Mount
• Co-Aligned Visible & IR Aiming Lasers
• IR LED Illuminator
• Powered By: One CR 123A Battery
• Remote Cable Port Activation / Mode Selector Switch
• Integrated Activation Switch
• Available in Black (part# 9001) or Desert Sand (part# 9002)

SPECIFICATIONS:

• Wavelength - Visible Green Laser: 532 nm
• Wavelength - IR Laser: 850 nm
• Wavelength - IR Illuminator: 850 nm LED
• Beam Divergence - Visible Green Laser: < 0.8 mRad
• Beam Divergence - IR Laser: < 0.8 mRad
• Beam Divergence - IR Illuminator: 2° to 30°
• Range/Visibility (Night/Day)* - Visible Green Laser: 750 m / 15 m
• Range/Visibility (Night/Day)* - IR Laser: > 250 m
• Range/Visibility (Night/Day)* - IR Illuminator: LED ≤ 1,000 m
• Temperature: -40° C to +65° C
• Battery: CR 123A
• Battery Life (mode dependent): > 3 hours
• Material: Aircraft Aluminum
• Color: Black (part# 9001) or Desert Sand (part# 9002)
• Weight (with battery): 12.5 oz.
• Dimensions: 3.95 (L) x 3.37 (W) x 1.59 (H)
• Waterproof: Submersible to 5 m
• Mount: QD HT Mount
• Windage and Elevation Adjustment: Yes
• Activation Switch: Integrated Push Button
• Remote Cable Pressure Pad: Yes
• Warranty: 3 Years
• Special Features: Co-aligned Visible & IR Aiming Lasers
